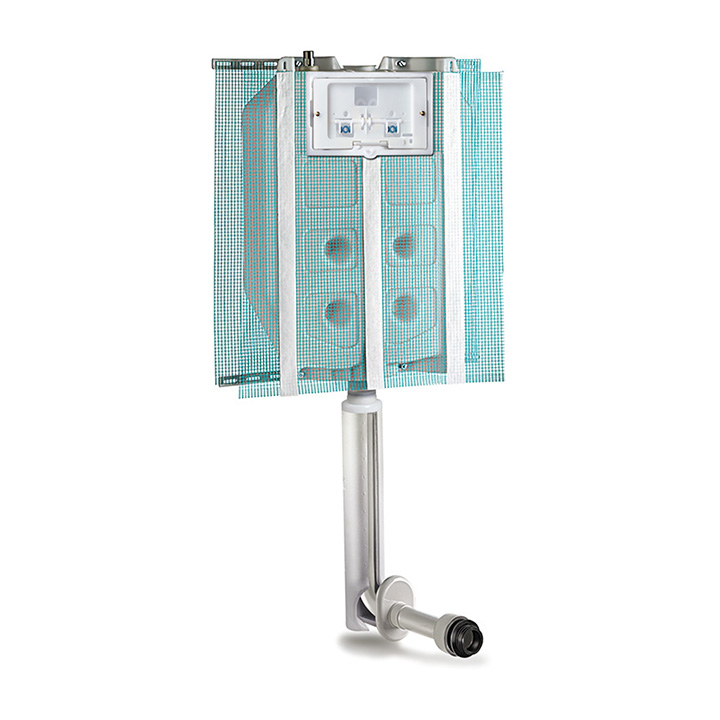

PUCCI 9LT FLUSH-MOUNTED EXHAUST SYSTEM ECO 1315490001 /

PUCCI 9LT FLUSH-MOUNTED EXHAUST SYSTEM ECO 1315490001

PUCCI® eco® 9l - 4l

TWO FLUSH BUTTONS FOR MASONRY WALLS - FOR FLOOR TOILETS

TECHNICAL DATA

• dynamic pressure 0.1-10 bar
• maximum water temperature 25°C
• Quantity & Size; 9-4L Rinse Default
• Long flush adjustment range 9-6l
• Short flush setting range 4-3l

Rinse hose adjustment after installation 4 cm (+2 -2 cm)

FIELDS D’APPLICATION

• For masonry walls
• For floor-standing toilets
• Two-quantity rins&wash;

FEATURES AND EQUIPMENT

• Polyethylene cassette 7.5 cm thick
• Pre-assembled plaster net
• Front control with two-quantity rinsing&wash;
• Water supply from high, dislocated at left
• 1/2 stop tap with holder
• 4 bracket brackets with screws for mounting the cassette
• Height-adjustable 35 x 11 cm rinsing hose (+2-2 cm)
• Protection cups and cap for adjusting the rinse hose
• Eccentric rose and 22 cm cannotto
• Combined clamp Ø 48-58 mm with trim
• Sleeve increase from Ø 40 to Ø 45 mm with
• OR 143 and clamp Ø 55-44 mm
• Gasket lubricant pack
• Door and interior protection
• Insulated against condensation

Supplier code: 1315490001
